ET43 Series

Handheld LCR Meter Introduction

Product description：

ET43 series Handheld LCR

Meterfeatures 2.8” TFT display screen, easy key operation and USB communication.Its high capacity lithium battery ensures longrun.It can measurecomprehensive parameters,and supports for screening and deviation measurement, with continuously adjustable output frequency.The basic accuracyreaches 0.2%/0.3%；

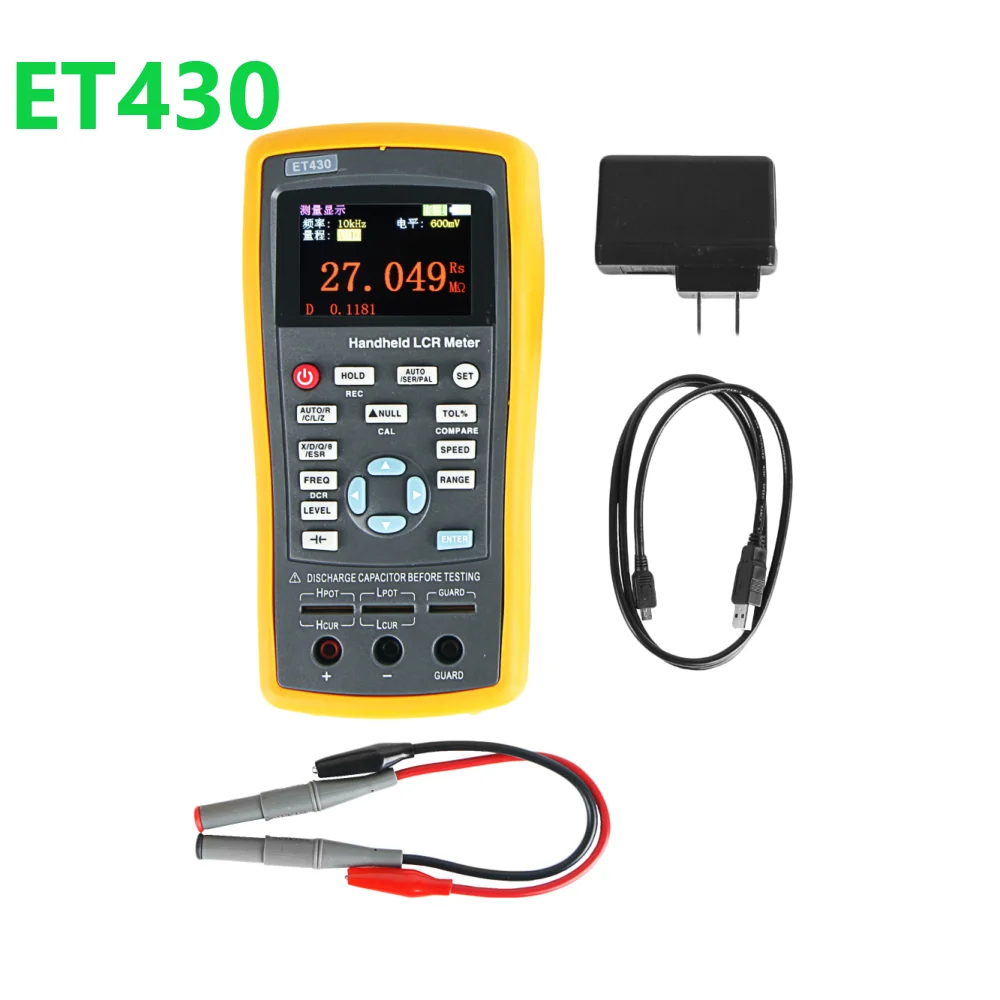

ET430: Test frequency: 100Hz～100kHZ, 6 test frequency points; component access automatic identification function; 2 test level points, electrolytic capacitor function;

ET431:Test frequency: 100Hz～10kHZ, accuracy: 0.2%, 4 test frequency points; component access automatic identification function; electrolytic capacitor function, DC resistance (DCR) function; 4 test level points, 4 and a half digits precision display ;

ET432:Test frequency: 100Hz～100kHZ, accuracy: 0.2%, 6 test frequency points; component access automatic identification function; electrolytic capacitor function, DC resistance (DCR) function; 6 test level points, 4 and a half digits precision display ;

ET433:Test frequency: 100Hz ~ 100kHZ; Accuracy: 0.2%, 4 and a half precision display; Test frequency: 1Hz continuous step adjustable; level 10mV ~ 1100mV, 1mV continuous step adjustable; component access automatic identification function; Electrolytic capacitor function, DC resistance (DCR) function;

Product features：

uMeasurable frequency up to 100k Hz,continuously adjustable

uSpecial function：Automatic identification and measurement after components are connected；

uInternal bias voltage output (0mV-500mV)， 1mV step, continuously adjustable；

uDC Resistance (DCR) measurement；

uElectrolytic capacitance measurement；

uSupport for screening and deviation measurement ；

uBasic measuring accuracy 0.2%；

uadjustable measuring speed；

u2.8” TFT display screen, a 4 1/2 digit display；

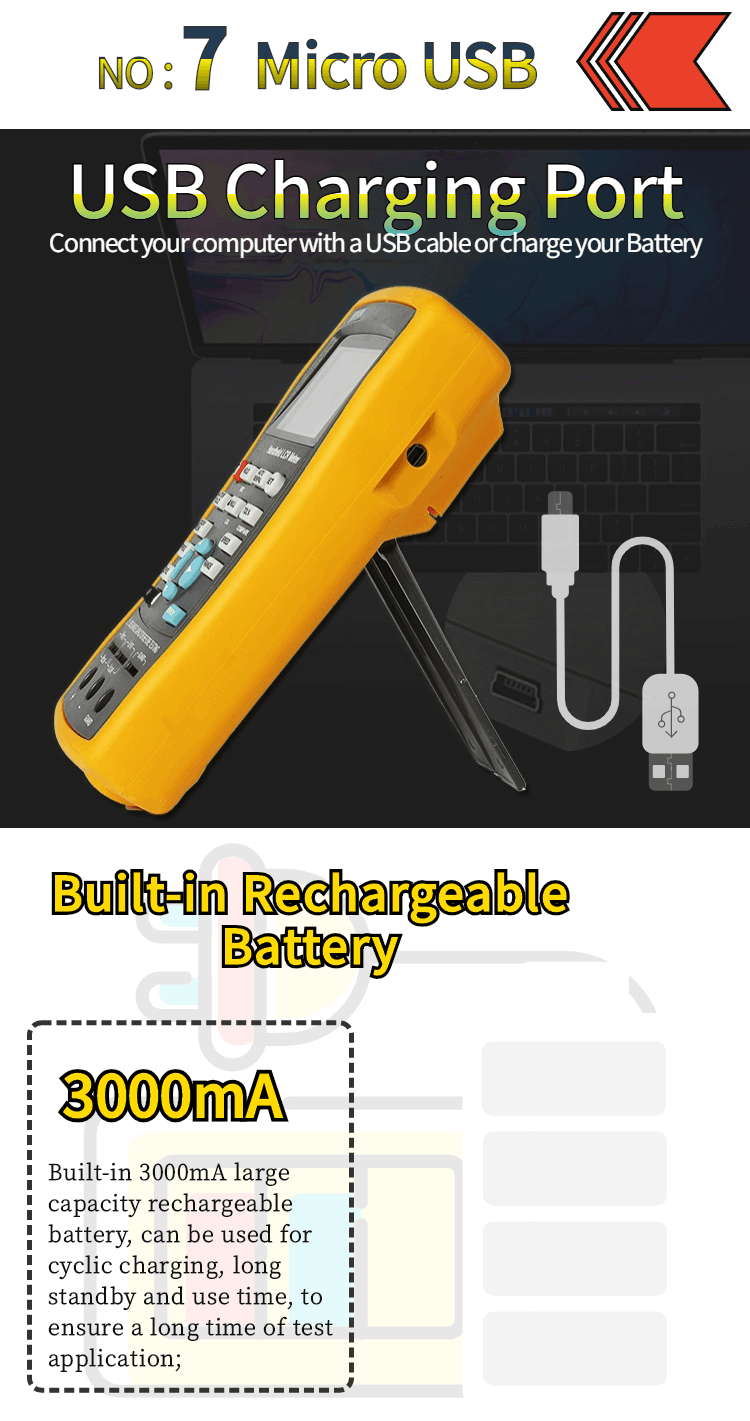

uUSB communication interface；

uPower supply by high capacity lithium battery；

uSupport for SCPI protocol；

uManual and automatic range；

uOpen circuit and short circuit calibration；

uMultiple testing ports；

                               For Order: Click Here

SPECIFICATIONS:

• Brand Name: East Tester
• Origin: Mainland China
• Model Number: ET430, ET431, ET432, ET433
• Certification: CE
• DIY Supplies: ELECTRICAL
• Display Type: Digital display
• Measuring Resistance Range: 0.0001Ω-20.000MΩ
• Measuring Capacitance Range: 0.000pF-20.000mF
• Measuring Inductance Range: 0.000uH-2000H
• Dimensions: 270*220*70mm
• Operating Temperature: 0 - 40 ℃
• Plug: EU,UK,US,CN,AU
